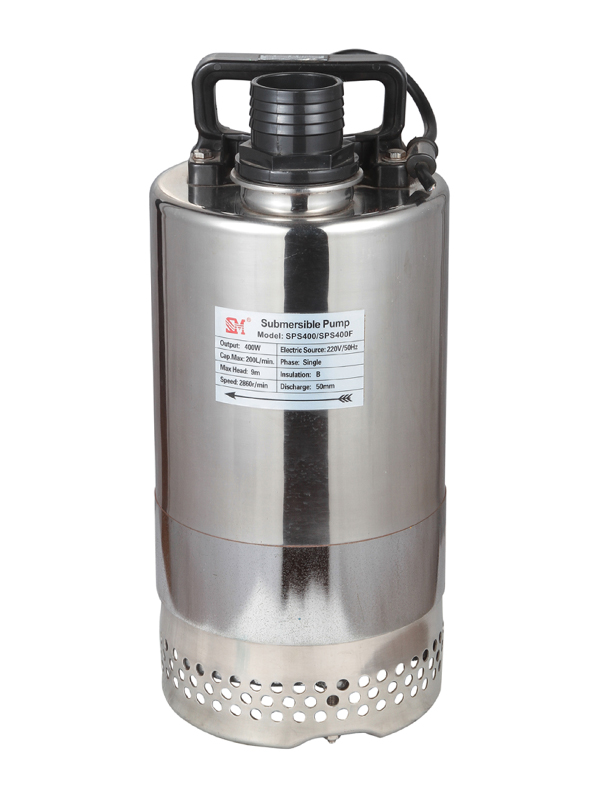

SPS700

產品描述

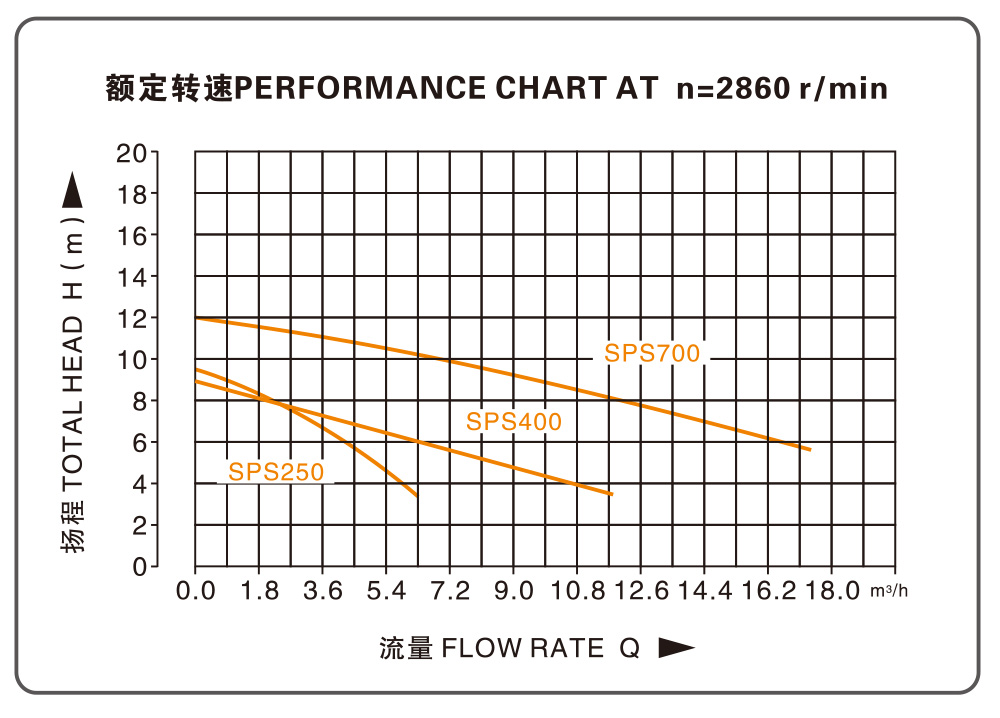

性能曲線 / Performance curve

用途與特點 / Function and Feature

SPS型不銹鋼機殼潛水泵廣泛用于園藝場、工礦企業、建筑工地、養殖業、農業和家庭等一般場所的給排水。水冷式的設計確保了該泵可擱淺使用，長時間運轉電機不過熱、壽命長、保養容易、排水徹底、使用方便等特點。機殼、濾網、轉子軸選用不銹鋼，泵體用鑄鐵鍍鉻，達到了外觀漂亮大方并具有較強的耐腐蝕性能。[從外觀看完全像一臺全不銹鋼制造的潛水泵，可它的價格，只是全不銹鋼(SPSN型)的50%左右]。配浮球開關后隨著液位的變化能實現自動控制啟停。電機內裝有保護器遇到過熱或電流時會(huì )自動切斷電源，保證了泵在較惡劣環境下運行的安全性與可靠性。

使用條件 / Condition of usag

◎ 電泵潛入水下深度不超過5米;

◎ 水溫不超過40℃;

◎ 水的PH值為6.5-8.5;

◎ 水中固體顆粒直徑不大于0.2毫米。

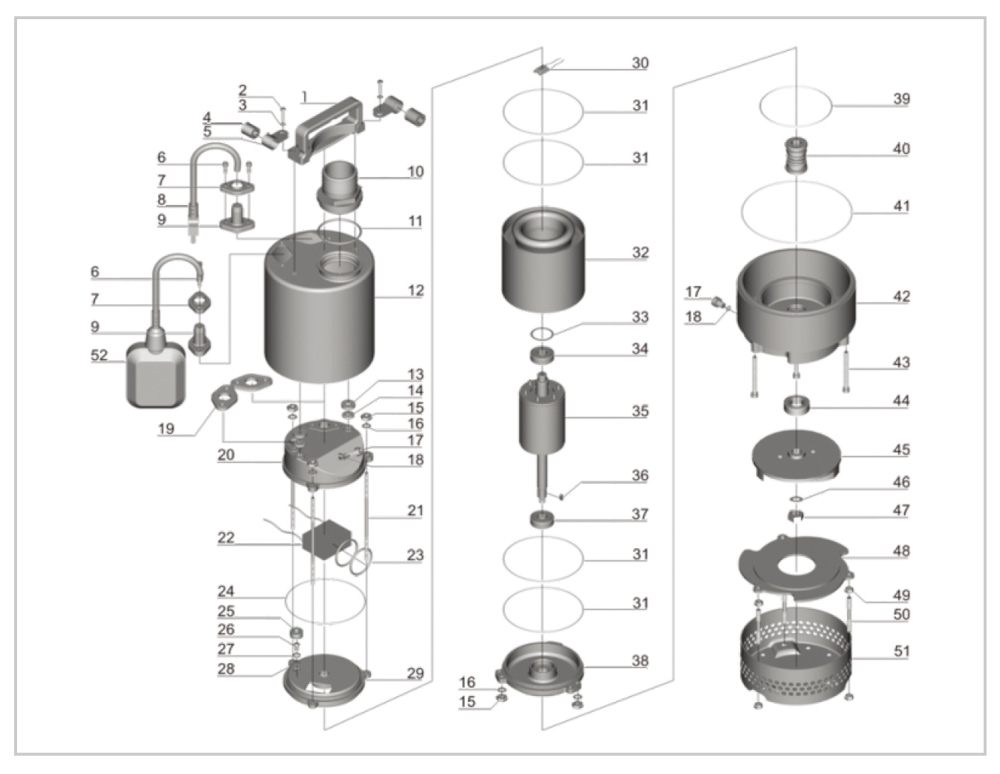

DIAGRAM分解圖 (For the reference of purchasing spare parts供選購配件時參考)

NO.	DESCRIPTION
1	Handle
2	Bolt
3	Washer
4	Protector
5	Cable presser
6	Screw
7	Flange
8	Cable
9	Cable protector
10	Out-let connector
11	"O" ring
12	Motor shell
13	Rubber washer
14	Washer
15	Nut
16	Washer
17	Screw
18	"O" ring
19	Rubber washer
20	Capacitor cover
21	Bilateral bolt
22	Capacitor
23	"O" ring
24	"O" ring
25	Line protector
26	Screw
27	Stretching washer

NO.	DESCRIPTION
28	Washer
29	Upper cover
30	Thermal protector
31	"O" ring
32	Motor stator
33	Undulated washer
34	Ball bearing
35	Rotor
36	Key
37	Ball bearing
38	Lower cover
39	"O" ring
40	Mechanical seal
41	"O" ring
42	Pump body
43	Screw
44	Oil seal
45	Impeller
46	Washer
47	Nut
48	Pump cover
49	Nut
50	Bilateral bolt
51	Filter mesh
52	Float switch

技術參數 / TECHNICAL DATA

Model 型號	Power 功率 (W)	Outlet Diameter 出水口徑 (mm)	Voltage 電壓 (V)	Max. Flow 最大流量 (L/min)	Max. Head 最高揚程 (m)	Weight 毛重 (kg)	Packing 包裝尺寸 (cm)
SPS700(F)	700	50	220/380	380	11	19	21.5x19x46

型號后加“F”表示裝配浮球開關的水泵
